1.橡膠撓性連軸器適用於小負載之軸連結. 2.特別適用於馬達直結連結. 3.同一型號橡膠材質分S , M , H三種不同扭力, 提供設計上多重選擇 . |

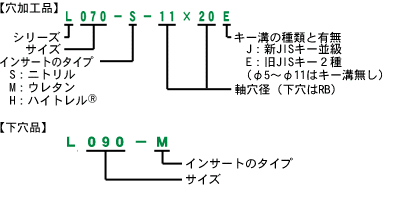

● 型號表示
●? 寸法表
|
|
|
|
 |
 |
 |
.................................................................................................................................................................................................單位 : mm
|
型號
|
定格扭力N-m (kgf.m)
|
最高迴 轉數r/min
|
本體型狀
|
下穴
|
最大可加工軸孔徑
|
L
|
I
|
E
|
G
|
H
|
D
|
DH
|
質量 kg |
慣性矩 kg.cm2 |
GD2 kg.cm2 |
| L035-S |
0.4(0.04)
|
31000
|
1
|
---
|
9.5
|
20.8
|
6.7
|
7.4
|
---
|
---
|
15.9
|
---
|
0.015
|
0.006
|
0.025
|
| L050-S |
2.9(0.3)
|
18000
|
1
|
---
|
16.0
|
44.5
|
15.9
|
12.7
|
---
|
---
|
27.4
|
---
|
0.10
|
0.12
|
0.49
|
| L050-H |
5.9(0.6)
|
||||||||||||||
| L070-S |
4.9(0.5)
|
14000
|
1
|
6.4
|
20.0
|
51.2
|
19.0
|
13.2
|
---
|
---
|
34.5
|
---
|
0.20
|
0.40
|
1.58
|
| L070-M |
7.8(0.8)
|
||||||||||||||
| L070-H |
12.7(1.3)
|
||||||||||||||
| L075-S |
11.8(1.2)
|
11000
|
2
|
8.0
|
26.0
|
54.4
|
20.6
|
13.2
|
---
|
---
|
44.5
|
---
|
0.36
|
1.14
|
4.57
|
| L075-M |
14.7(1.5)
|
||||||||||||||
| L075-H |
25.5(2.6)
|
||||||||||||||
| L090-S |
16.7(1.7)
|
9000
|
2
|
11.1
|
29.0
|
54.4
|
20.6
|
13.2
|
---
|
---
|
53.6
|
---
|
0.54
|
2.45
|
9.80
|
| L090-M |
24.5(2.5)
|
||||||||||||||
| L090-H |
44.1(4.5)
|
||||||||||||||
| L095-S |
23.5(2.4)
|
9000
|
2
|
11.1
|
29.0
|
64.0
|
25.4
|
13.2
|
---
|
---
|
53.6
|
---
|
0.64
|
2.95
|
11.8
|
| L095-M |
32.3(3.3)
|
||||||||||||||
| L095-H |
63.7(6.5)
|
||||||||||||||
| L099-S | 35.3(3.6) |
7000
|
2
|
12.7
|
35.0
|
72.8
|
27.0
|
18.8
|
---
|
---
|
64.3
|
---
|
1.1
|
6.95
|
27.8
|
| L099-M | 53.9(5.5) | ||||||||||||||
| L099-H | 89.2(9.1) | ||||||||||||||
| L100-S |
49.0(5.0)
|
7000
|
2
|
15.0
|
37.0
|
88.8
|
34.9
|
19.0
|
---
|
---
|
64.3
|
---
|
1.2
|
8.35
|
33.4
|
| L100-M |
70.6(7.2)
|
||||||||||||||
| L100-H |
128(13.1)
|
||||||||||||||
| L110-S |
110(11.2)
|
5000
|
2
|
18.0
|
48.0
|
108.4
|
42.9
|
22.6
|
---
|
---
|
84.1
|
---
|
2.8
|
31
|
124
|
| L110-M |
133(13.6)
|
||||||||||||||
| L110-H |
256(26.1)
|
||||||||||||||
| L150-S |
157(16.0)
|
5000
|
2
|
22.0
|
49.0
|
114.6
|
44.4
|
25.8
|
---
|
---
|
95.2
|
---
|
3.7
|
53
|
212
|
| L150-M |
214(21.8)
|
||||||||||||||
| L150-H |
363(37.0)
|
||||||||||||||
| L190-S |
192(19.6)
|
5000
|
3
|
19.1
|
58.0
|
134.1
|
54.0
|
26.1
|
34.9
|
19.1
|
114.3
|
101.6
|
5.8
|
108
|
430
|
| L190-M |
288(29.4)
|
||||||||||||||
| L190-H |
529(54.0)
|
||||||||||||||
| L225-S |
264(26.9)
|
4200
|
3
|
19.1
|
69.0
|
153.1
|
63.5
|
26.1
|
34.9
|
28.6
|
127.0
|
107.9
|
8.0
|
182
|
726
|
| L225-M |
395(40.3)
|
||||||||||||||
| L225-H |
711(72.6)
|
 |
