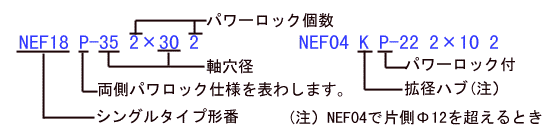

●? SINGLE TYPE+ POWER LOCK 型號表示

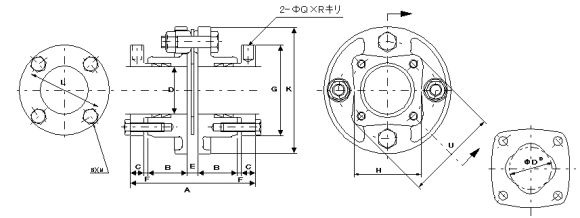

●?SINGLE TYPE+ POWER LOCK 寸法表
|
NEF04P
|
NEF04KP
|
 |
 |
|
NEF10P . NEF18P . NEF25P
|
 |
.................................................................................................................................................................................................單位 : mm
|
型號
|
A
|
B
|
C
|
DD
|
E
|
F
|
G
|
H
|
K
|
L
|
M
|
N
|
Q
|
R
|
U
|
|
NEF04P
|
72.9
|
25.4
|
6
|
29
|
6.1
|
2
|
34
|
...
|
67.5
|
26
|
M4×14 |
4
|
4
|
7
|
------
|
|
NEF04KP
|
75.9
|
25.4
|
8
|
29
|
6.1
|
3
|
52
|
...
|
67.5
|
40
|
M6×22 |
4
|
5
|
10
|
------
|
|
NEF10P
|
83.4
|
25.4
|
10
|
37
|
6.6
|
3
|
66
|
47
|
81.0
|
54
|
M6×22 |
4
|
7
|
10
|
66.0
|
|
NEF18P
|
91.7
|
28.7
|
10
|
39
|
8.3
|
3
|
66
|
49
|
93.0
|
54
|
M6×22 |
4
|
7
|
10
|
68.0
|
|
NEF25P
|
108.2
|
33.5
|
12
|
45
|
11.2
|
3
|
78
|
60
|
104.0
|
64
|
M8×28 |
4
|
8
|
13
|
78.3
|
●?SINGLE TYPE 傳動能力表
|
型號
|
定格扭力
|
最高迴 轉數
|
最大可加工軸孔徑
|
軸向彈性係數
|
容許誤差
|
質量
|
慣性矩
|
GD2
|
扭轉剛性
|
|
|
N-m (kgf.m)
|
r/min
|
軸套
|
N / mm
|
角度誤差(deg)
|
軸方向變位(mm)
|
kg
|
kg..cm2 |
kg..cm2 |
kgf.m/rad
|
|
| NEF04P |
39.2(4)
|
20000
|
12
|
40.2
|
1
|
±0.8
|
0.8
|
2 .2
|
8.9
|
2600
|
| NEF04KP |
39.2(4)
|
20000
|
12
|
40.2
|
1
|
±0.8
|
0.9
|
3.00
|
11.9
|
2600
|
| NEF10 |
98(10)
|
20000
|
35
|
58.8
|
1
|
±1.0
|
1.2
|
8.25
|
33.0
|
9000
|
| NEF18 |
176(18)
|
18000
|
35
|
127
|
1
|
±1.2
|
1.7
|
14.80
|
59.0
|
16000
|
| NEF25 |
245(25)
|
15000
|
42
|
157
|
1
|
±1.4
|
2.7
|
28.80
|
115.0
|
27000
|
 |
