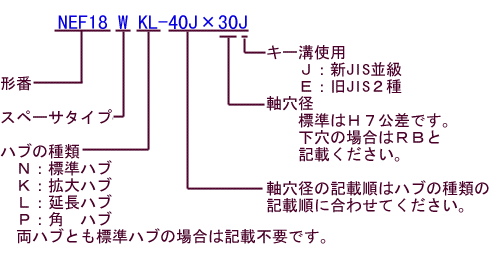

●? LONG SPACER TYPE 型號表示

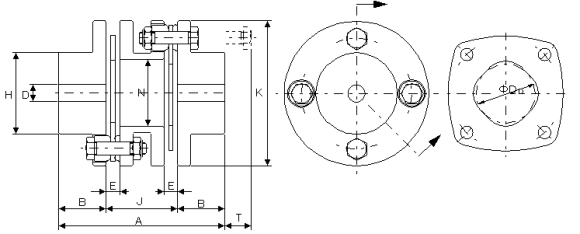

●?LONG SPACER TYPE 寸法表
...................................................................................................................................................................................................單位 : mm
|
型號
|
A
|
B
|
DD
|
E
|
H
|
K
|
J
|
N
|
T
|
|
NEF04W
|
86.8
|
25.4
|
29
|
6.1
|
34
|
67.5
|
36
|
25
|
15.5
|
|
NEF10W
|
89.8
|
25.4
|
37
|
6.6
|
46
|
81.0
|
39
|
37
|
16.0
|
|
NEF18W
|
104.4
|
28.7
|
39
|
8.3
|
51
|
93.0
|
47
|
38
|
23.0
|
|
NEF25W
|
120.0
|
33.5
|
45
|
11.2
|
61
|
104.0
|
53
|
47
|
21.0
|
|
NEF45W
|
144.2
|
41.1
|
51
|
11.7
|
71
|
126.0
|
62
|
58
|
23.0
|
|
NEF80W
|
164.6
|
47.8
|
61
|
11.7
|
84
|
143.0
|
69
|
71
|
29.5
|
|
NEF130W
|
192.4
|
57.2
|
73
|
16.8
|
106
|
168.0
|
78
|
92
|
20.0
|
|
NEF210W
|
216.0
|
63.5
|
84
|
17.0
|
118
|
194.0
|
89
|
103
|
32.5
|
|
NEF340W
|
249.4
|
76.2
|
97
|
21.6
|
137
|
214.0
|
97
|
118
|
19.5
|
|
NEF540W
|
286.8
|
88.9
|
110
|
23.9
|
156
|
246.0
|
110
|
135
|
24.5
|
|
NEF700W
|
337.2
|
101.6
|
120
|
27.2
|
169
|
276.0
|
120
|
146
|
40.0
|
●?LONG SPACER TYPE 傳動能力表
|
型號
|
定格扭力
|
最高迴 轉數
|
下穴
|
最大可加工軸孔徑
|
軸向彈性係數
|
容許誤差
|
質量
|
慣性矩
|
GD2
|
扭轉剛性
|
|||
|
N-m (kgf.m)
|
r/min
|
d
|
鍵槽
|
軸套
|
N / mm
|
角度誤差(deg)
|
平行誤差(mm)
|
軸方向變位(mm)
|
kg
|
kg..cm2 |
kg..cm2 |
kgf.m/rad
|
|
|
NEF04W
|
39.2(4)
|
20000
|
8
|
23
|
12
|
20.6
|
1
|
0.5
|
±0.8
|
1.1
|
4.5
|
17.8
|
1216
|
|
NEF10W
|
98(10)
|
20000
|
10
|
32
|
35
|
29.4
|
1
|
0.6
|
±1.0
|
1.4
|
11.5
|
46.0
|
4041
|
|
NEF18W
|
176(18)
|
18000
|
12
|
35
|
35
|
63.7
|
1
|
0.6
|
±1.2
|
2.3
|
24.5
|
98.0
|
8082
|
|
NEF25W
|
245(25)
|
15000
|
15
|
42
|
42
|
78.4
|
1
|
0.7
|
±1.4
|
3.0
|
40.0
|
160.0
|
13093
|
|
NEF45W
|
441(45)
|
13000
|
15
|
50
|
35
|
109.0
|
1
|
0.8
|
±1.6
|
6.6
|
94.3
|
377.0
|
22268
|
|
NEF80W
|
784(80)
|
12000
|
15
|
60
|
45
|
153.0
|
1
|
0.9
|
±1.8
|
10.3
|
194.0
|
775.0
|
40412
|
|
NEF130W
|
1270(130)
|
10000
|
25
|
74
|
65
|
177.0
|
1
|
1.0
|
±2.5
|
16.1
|
407.0
|
1628.0
|
75773
|
|
NEF210W
|
2060(210)
|
8000
|
25
|
83
|
71
|
225.0
|
1
|
1.2
|
±2.7
|
23.2
|
829.0
|
3317.0
|
116495
|
|
NEF340W
|
3330(340)
|
7500
|
45
|
95
|
85
|
235.0
|
1
|
1.3
|
±3.3
|
40.2
|
1360.0
|
5428.0
|
167010
|
|
NEF540W
|
5290(540)
|
3400
|
50
|
109
|
------
|
274.0
|
1
|
1.4
|
±3.8
|
55.0
|
3000.0
|
12000.0
|
220619
|
|
NEF700W
|
6860(700)
|
3100
|
70
|
118
|
------
|
294.0
|
1
|
1.8
|
±4.0
|
60.0
|
5750.0
|
230000.0
|
300000
|
 |
