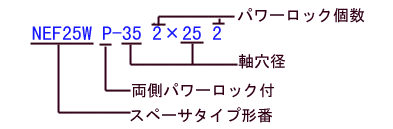

●? LONG SPACER + POWER LOCK TYPE 型號表示
●?LONG SPACER+ POWER LOCK TYPE 寸法表
|

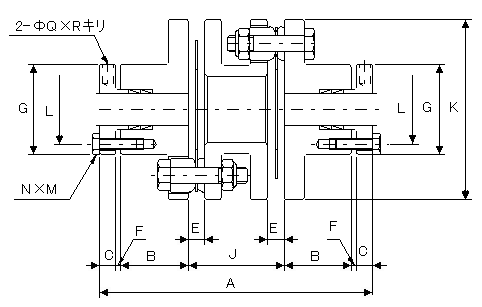

NEF04WP
|
 |
|

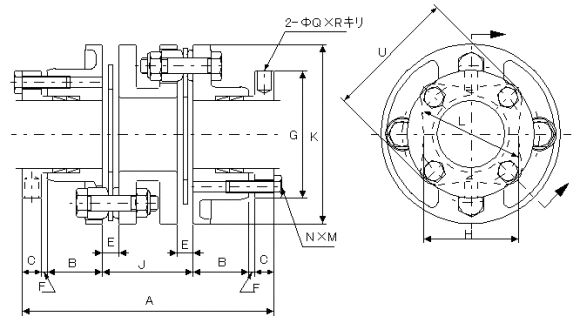

NEF10WP . NEF18WP . NEF25WP
|
 |
...................................................................................................................................................................................................單位 : mm
|
型號
|
A
|
B
|
C
|
DD
|
E
|
F
|
G
|
H
|
K
|
L
|
M
|
J
|
Q
|
R
|
N
|
U
|
|
NEF04WP
|
102.8
|
25.4
|
6
|
29
|
6.1
|
2
|
34
|
---
|
67.5
|
26
|
M4X14
|
36
|
4
|
7
|
4
|
---
|
|
NEF10WP
|
115.8
|
25.4
|
10
|
37
|
6.6
|
3
|
66
|
47
|
81.0
|
54
|
M6X22
|
39
|
7
|
10
|
4
|
66.0
|
|
NEF18WP
|
130.4
|
28.7
|
10
|
39
|
8.3
|
3
|
66
|
49
|
93.0
|
54
|
M6X22
|
47
|
7
|
10
|
4
|
68.0
|
|
NEF25WP
|
150.0
|
33.5
|
12
|
45
|
11.2
|
3
|
78
|
60
|
104.0
|
64
|
M8X28
|
53
|
8
|
13
|
4
|
78.3
|
●?LONG SPACER + POWER LOCK TYPE傳動能力表
|
型號
|
定格扭力
|
最高迴 轉數
|
最大可加工軸孔徑
|
軸向彈性係數
|
容許誤差
|
質量
|
慣性矩
|
GD2
|
扭轉剛性
|
||
|
N-m (kgf.m)
|
r/min
|
軸套內徑
|
N / mm
|
角度誤差(deg)
|
平行誤差(mm)
|
軸方向變位(mm)
|
kg
|
kg..cm2 |
kg..cm2 |
kgf.m/rad
|
|
|
NEF04WP
|
39.2(4)
|
20000
|
12
|
20.6
|
1
|
0.50
|
±1.6
|
1.3
|
4.68
|
18.7
|
1216
|
|
NEF10WP
|
98(10)
|
20000
|
35
|
29.4
|
1
|
0.55
|
±2.0
|
1.8
|
12.90
|
51.6
|
4041
|
|
NEF18WP
|
176(18)
|
18000
|
35
|
63.7
|
1
|
0.60
|
±2.4
|
2.7
|
26.30
|
105.0
|
8082
|
|
NEF25WP
|
245(25)
|
15000
|
42
|
78.4
|
1
|
0.70
|
±2.8
|
3.9
|
46.50
|
186.0
|
13093
|
 |
